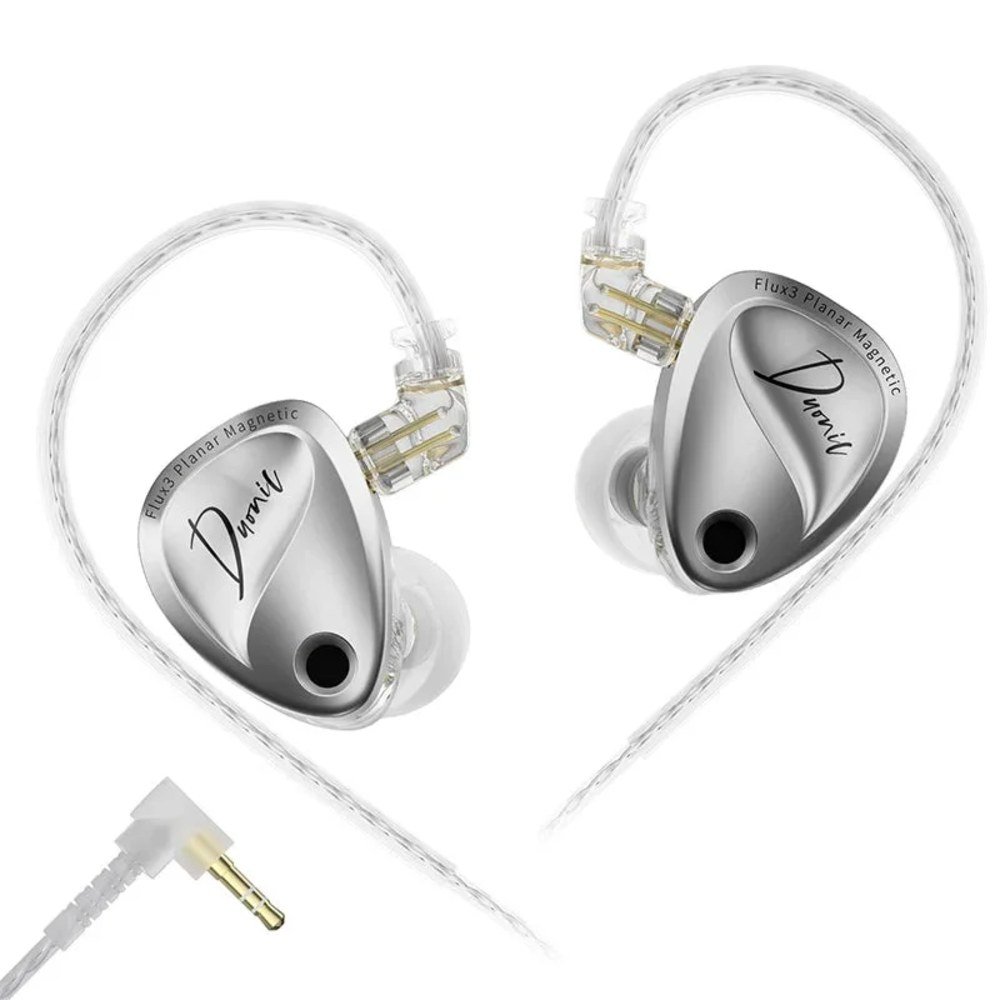

KZ DUONIC: three-magnet planar magnetic driver and dynamic driver
The KZ DUONIC are hybrid in-ear earphones that combine on each side a three-magnet planar magnetic driver (Flux3) and an 8 mm super-linear dynamic driver. They are tuned to the HM curve, have a detachable cable and come in a standard version or with switches, without microphone, with microphone and 3.5 mm jack, or with microphone and USB-C plug.
- 2drivers: Flux3 planar and 8 mm dynamic
- 24 Ωimpedance (standard version)
- 103 dBsensitivity
- 2versions: standard and Tuning
Sound

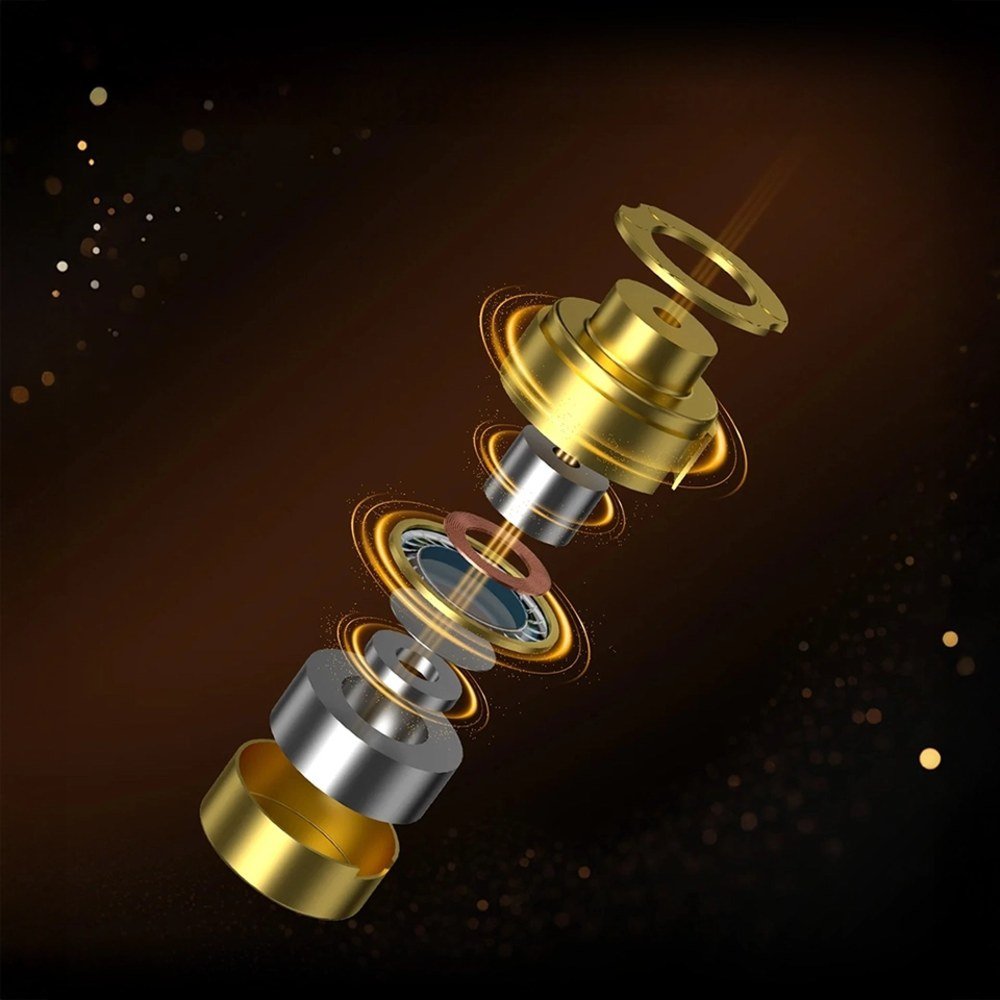

Sound: Flux3 planar and 8 mm dynamic driver
According to KZ, the long-excursion Flux3 planar driver responds faster than a traditional dynamic driver, while the 8 mm dynamic driver delivers the bass. Together they offer deep bass, clear mids and good spatial separation, useful for music and for locating sounds in games.
The frequency response goes from 10 Hz to 20 kHz, with 103 dB sensitivity.
Versions

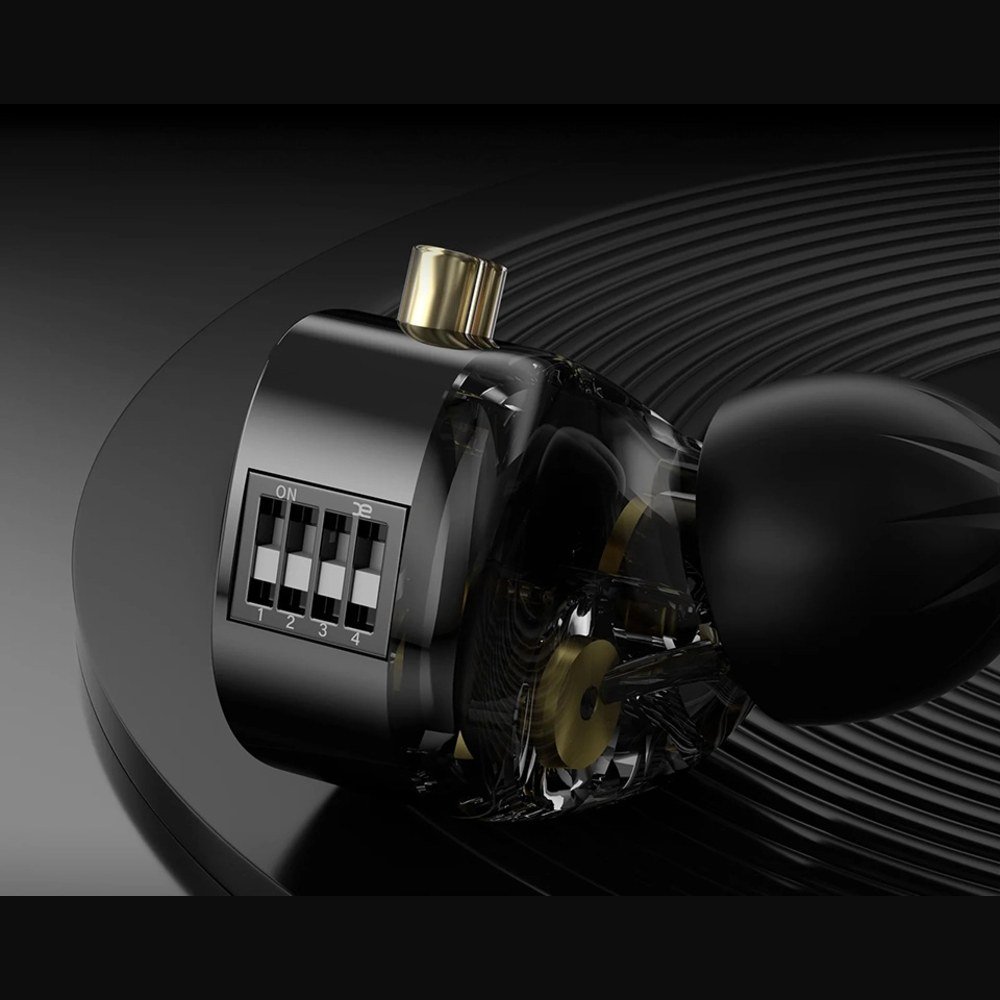

Standard version or version with switches

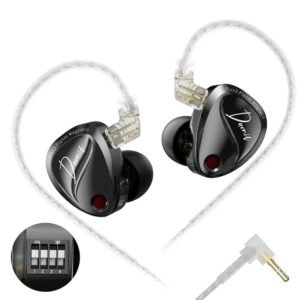

The standard version (24 Ω) has no switches: it comes tuned to the HM curve, with nothing to adjust. The Tuning version (22–28 Ω) adds an electronic filter with four switches per earpiece:
- Switch 1: raises the bass by 1 dB.
- Switches 1 and 2: raise the bass by 2 dB.
- Switch 3: raises the mids and treble by one level.
- Switches 3 and 4: raise the mids and treble by two levels.
Connection
Dual microphone and USB-C version with sound card
The microphone versions use a cable with two 6 mm condenser microphones and a sensitivity of about -26 dB, which filter out background noise and wind in calls and voice chat.
The USB-C version has a DSP sound card with four modes: standard, bass boost, immersive gaming and Hi-Fi.
Connection

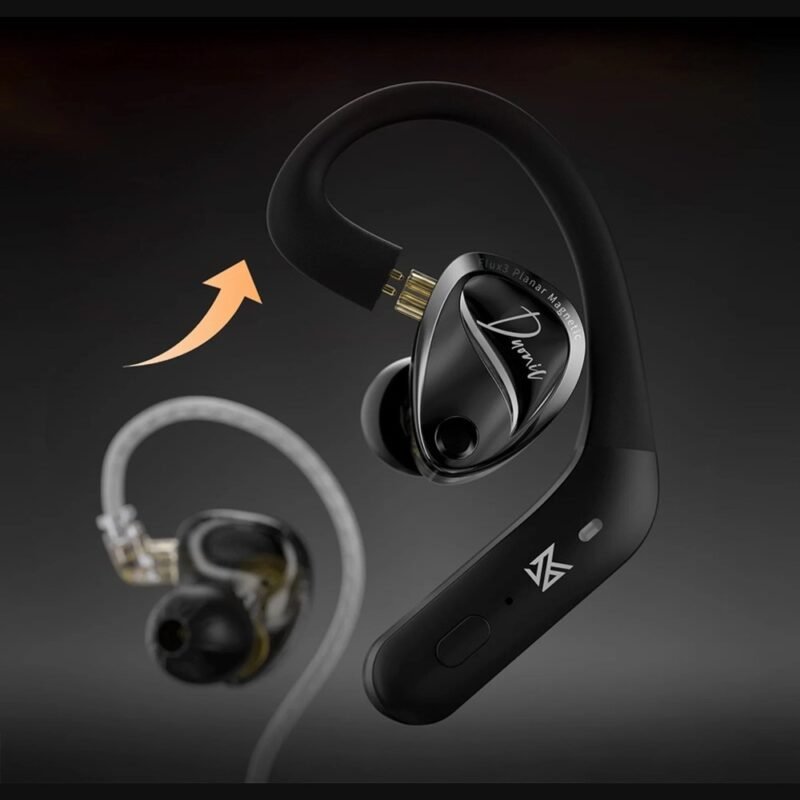

Detachable silver-plated cable
The cable is silver-plated copper, 120 cm long (±5 cm), and connects with a 0.78 mm 2-pin connector. It can be replaced with another cable or with a compatible KZ Bluetooth adapter that is compatible.
They sit inside the ear with three pairs of ear tips in different sizes.
KZ DUONIC technical specifications
| Drivers | 1 three-magnet planar magnetic (Flux3) + 1 × 8 mm dynamic per earpiece |
|---|---|
| Frequency response | 10 Hz – 20 kHz |
| Impedance | 24 Ω (standard) / 22–28 Ω (Tuning) |
| Sensitivity | 103 dB |
| Earphone connector | 0.78 mm 2-pin |
| Plug | 3.5 mm jack or USB-C with DSP (depending on version) |
| Cable | Silver-plated copper, detachable |
| Cable length | 120 ± 5 cm |
| Switches | 4 per earpiece (Tuning version) |
| Microphone | Optional, 6 mm dual microphone |
| Versions | Standard and Tuning |

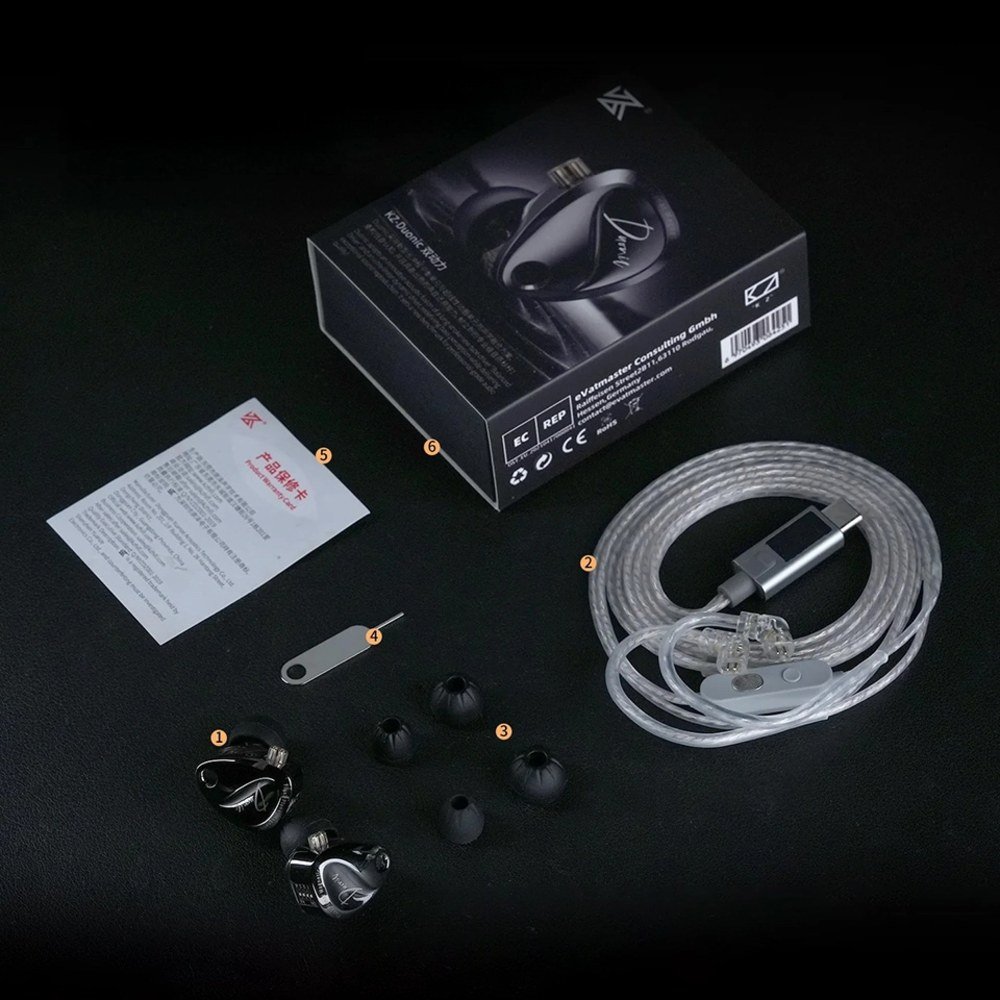

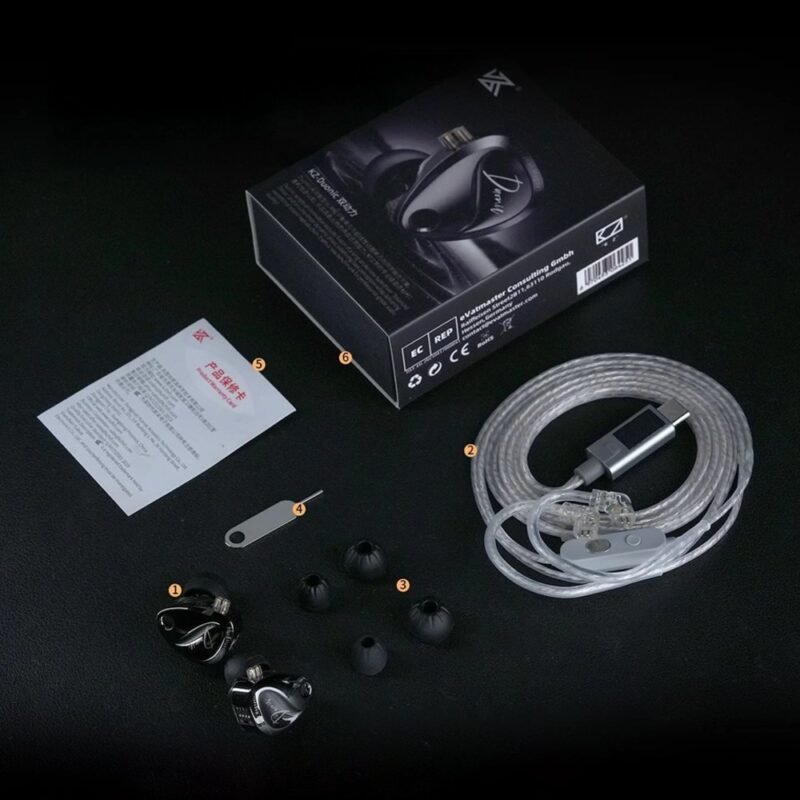

What's in the box
- 1 pair of KZ DUONIC earphones
- 1 detachable cable
- 3 pairs of ear tips (1 fitted)
- 1 switch tool (Tuning version only)
- 1 warranty card
KZ DUONIC frequently asked questions
What is the difference between the standard and the Tuning version?
The standard version comes tuned to the HM curve and has no switches. The Tuning version adds four switches per earpiece to raise the bass or the mids and treble.
What does the sound card in the USB-C version do?
It lets you choose between four sound modes: standard, bass boost, immersive gaming and Hi-Fi.
What is the advantage of the USB-C version?
It plugs straight into the USB-C port of phones, tablets and computers, with no adapter. The 3.5 mm jack versions need an adapter on phones without a headphone jack.
Do they have noise cancellation?
They do not have active noise cancellation. By sealing the ear canal with the ear tips they block outside noise passively.
What warranty do they come with?
3-year warranty against manufacturing defects, handled from Spain.
